T30-NT-XX


TA30-NT-XX (High Speed Turbo Alternator)

TA30-NT-XX

A30-NT-XX (Turbo Alternator)

This is one version of our proposed high speed permanent magnet turbo alternator. The red and green circles are the ends of the cylindrical magnets. We have halted development of this machine due to its complexity and the expected high cost of the associated electronics.

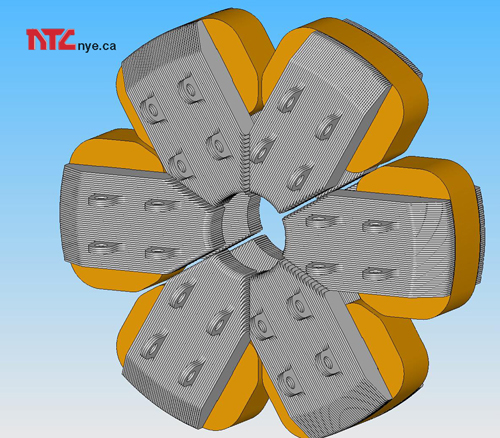

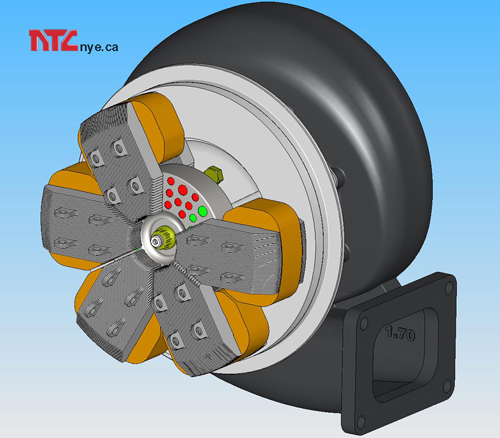

Coil Pack Coil Pack Coil Pack Ass'y Coil Pack View Coil Pack Assembled

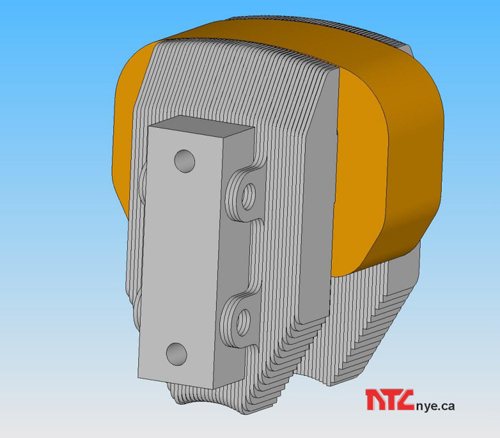

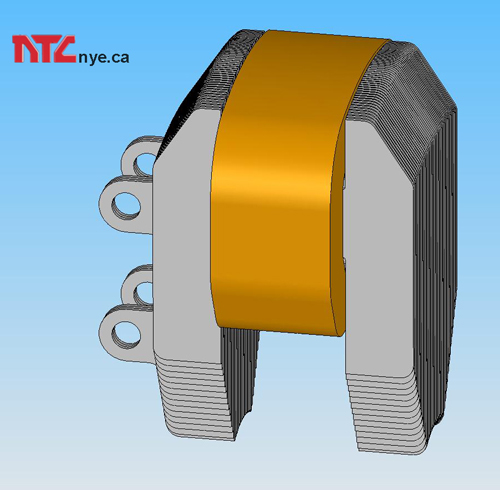

Coil Pack Design.

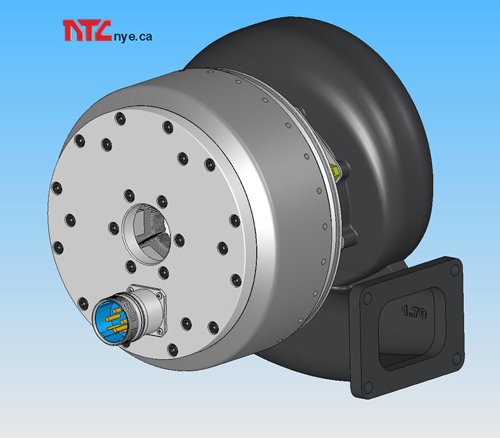

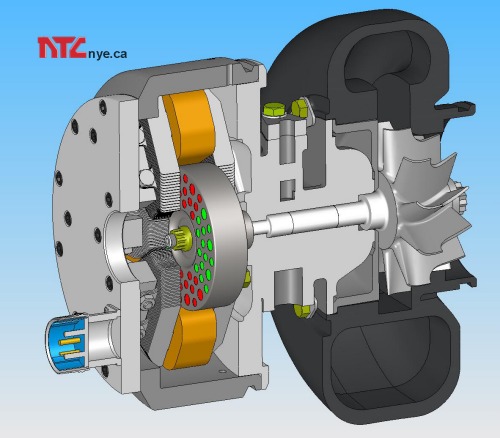

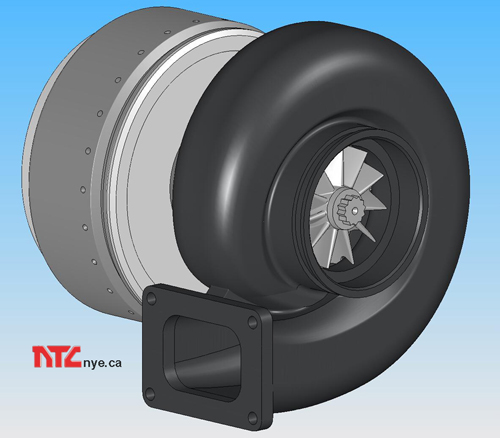

Isometric View Isometric View 1 Isometric View 2 The whole Ass'y

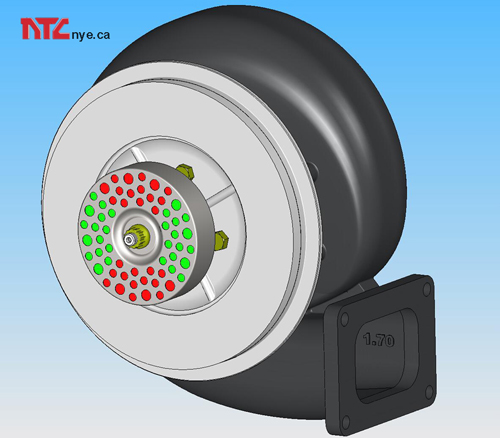

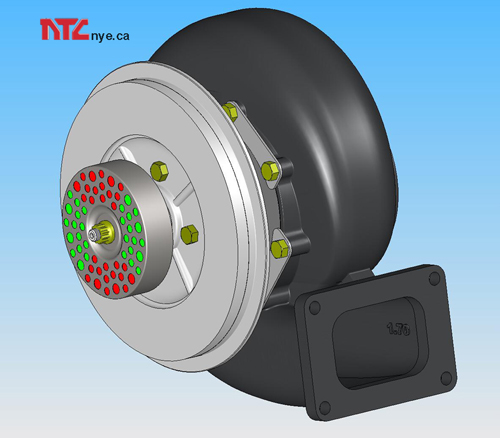

Isometric with shaft and magnets.
