NT-DK101-T63

Improved NT-DK103/T63 drive kits now available.



NTDK101-T63 NTDK101-T63 NTDK101-T63 NTDK101-T63 NTDK101-T63

Feb. 2003, Back by popular demand, we have sold a total of about 12 of the original T63 Drive Kits for the Allison 250 series engine. Now we have taken the design to the next level with several improvements.

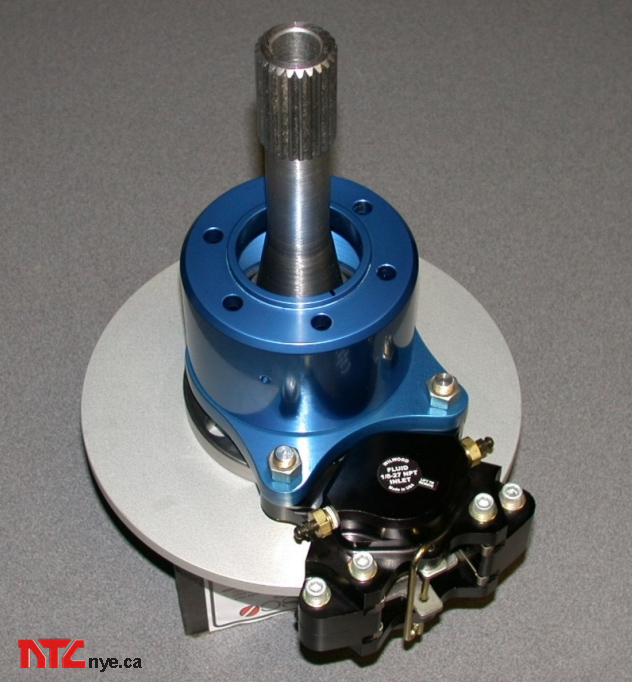

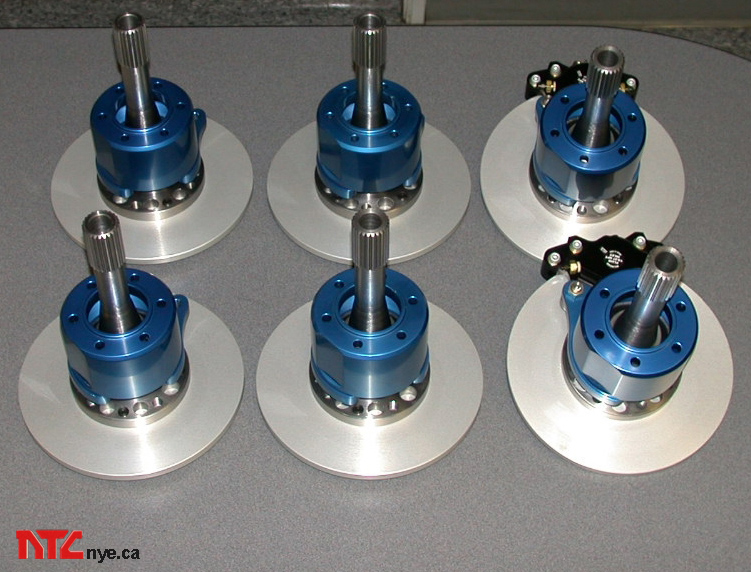

The new DK103-T63 drive kit has all the features of the earlier designs plus:

Bullet The heat treated 4130 drive shaft is through drilled and internally profiled to reduce weight.
Bullet The output flange is drilled to reduce inertia.
Bullet Bolt-pattern is now directly compatible with Spicer 3-2-119  (1350 Series) drive shaft yoke.
(no more adapters)
Bullet Caliper bracket is billet 6061-T6 aluminum.

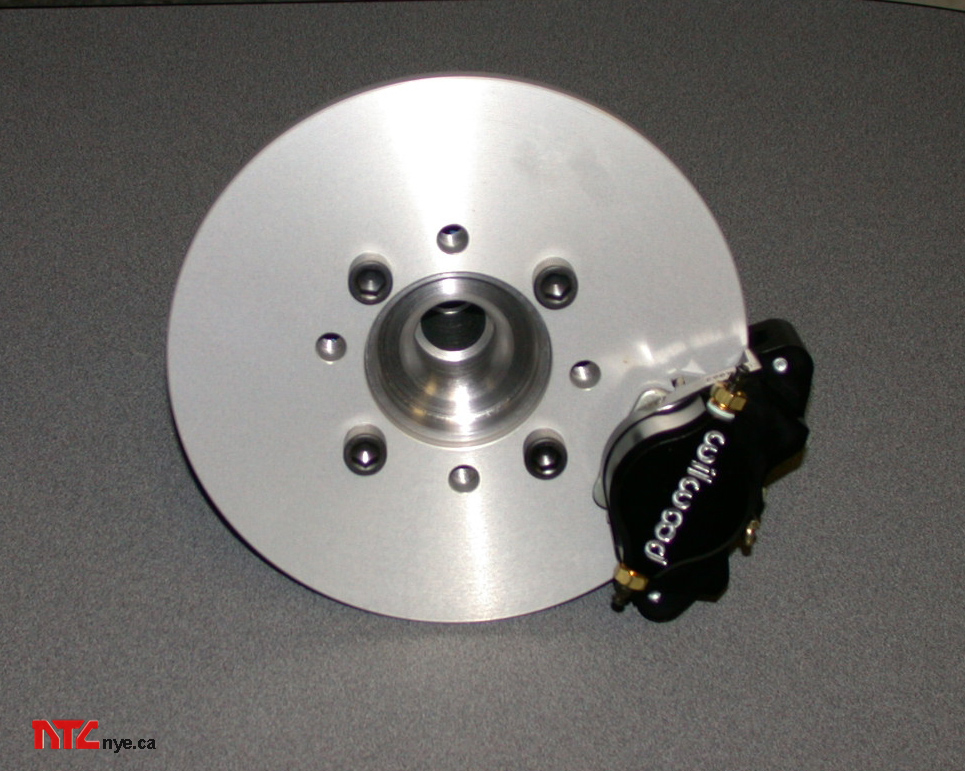

Bullet Brake rotor is turned from billet 6061-T6 aluminum.
Bullet Wilwood brake caliper and mounting bolts are now included.
Bullet Special brake pads designed for aluminum rotors now included.
Bullet All aluminum components are anodized for enduring beauty.

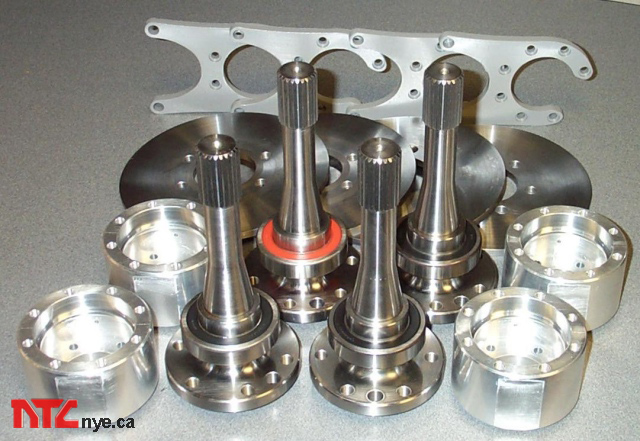

T63 Drive Kit

Earlier drive kit as used in Squirt 1



For more information and pricing contact:   or call 905 897 2311 (GMT+5)



Want to know more?
The NT Infopack CD contains lots of detailed drawings and high-res. photos.
